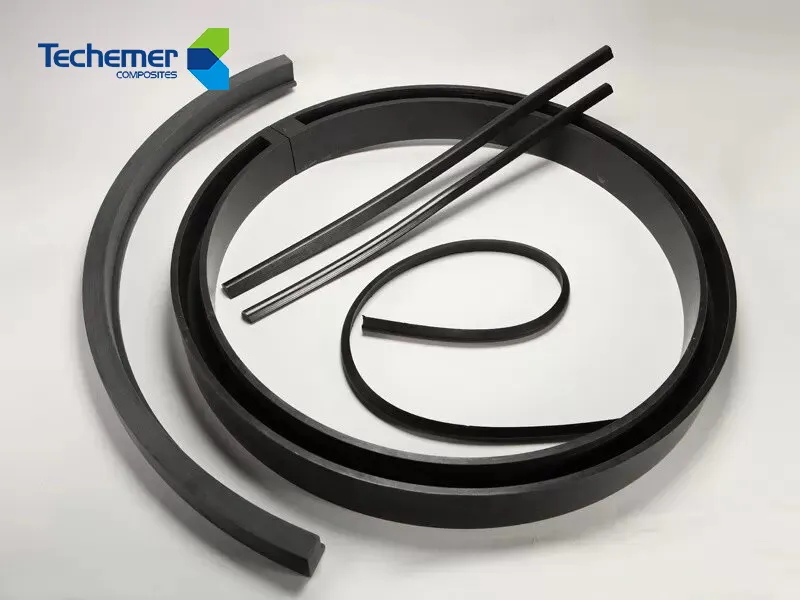

Hot Selling Shaft Rubber Seal

#unit-iSc4Bn4ra72B4xD .ce-image_inner{justify-content:center;}#unit-iSc4Bn4ra72B4xD .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-iSc4Bn4ra72B4xD .ce-image{height:100%;width:100%;--image-effect:2;}









#unit-1PRebL4rT1q8wB6{padding-top:1vw;}

January 3, 2025, Guangzhou – Techemer Composites (Guangdong) Co., Ltd.


After a rigorous process of installation, debugging, and inspection, the independently developed pump mechanical seal system—designed for a 700mm large shaft diameter horizontal unit, the first of its kind in China—has successfully passed on-site acceptance testing. Now fully operational, this achievement highlights not only the product's advanced technical capabilities but also its outstanding real-world reliability, providing long-term stability for critical equipment.


Key Features of the High-Performance Mechanical Seal for Pump Systems
This high-efficiency mechanical seal for pumps leverages cutting-edge materials and engineering know-how to meet the increasing demands of modern industries. Whether for general-purpose or heavy-duty applications, this solution offers a reliable sealing method for various types of rotating equipment, including water pump mechanical seals and high-load machinery.


Tailored for Large Horizontal Units: Purpose-built for large shaft diameter horizontal configurations, the system shows excellent compatibility with industrial pumps requiring mechanical seals, supporting continuous operation even under tough conditions.
Dual Compensation Mechanism: The innovative blend of spring-based compensation and manual fine-tuning enables real-time responsiveness. This ensures optimal sealing performance over time, minimizing the risk of seal failure in mechanical seals for water pumps exposed to thermal cycling and friction.
Enhanced Double Sealing Structure: This mechanical seal system for pumps goes beyond the typical spring-loaded mechanism, adding a radial sealing layer for extra protection. This double-layered approach ensures leak prevention even under high-pressure, high-speed rotation—key in critical water pump mechanical seal applications.
Low Leakage and Environmental Compliance: The system significantly reduces leakage using precision sealing technology. Not only does this help meet strict international standards, but it also promotes safer, cleaner operations—something especially important in mechanical seals for pump installations in environmentally sensitive zones.
High Pressure Resistance: Engineered to perform in extreme pressure environments, this system is ideal for heavy-duty pump applications where seal integrity is crucial.
Easy Maintenance During Shutdowns: Designed with serviceability in mind, the seal allows full maintenance access during scheduled shutdowns, reducing long-term costs and improving machinery uptime.
Quick Installation and Replacement: Whether you're dealing with a large industrial pump or a mid-size water transfer unit, this system simplifies the process. Technicians can replace the mechanical seal for pump units without extensive downtime, even in complex setups.

#unit-Iuoe9tcJa3oC6dh .ce-image_inner{justify-content:center;}#unit-Iuoe9tcJa3oC6dh .ce-image_item{--svg-color:rgba(131, 195, 38,1);}#unit-Iuoe9tcJa3oC6dh .ce-image{height:100%;width:100%;--image-effect:2;}#unit-Iuoe9tcJa3oC6dh{padding-top:1vw;padding-bottom:1vw;}











On-Site Acceptance and Expert Evaluation
During the acceptance phase, a professional review team carried out extensive functionality and pressure tests. Every metric exceeded design expectations, and importantly, no leakage occurred throughout testing.
The evaluation panel praised the seal's high precision, smooth operation, and robust sealing effect. They especially noted how this new generation of mechanical seals for pumps marks a leap forward in both reliability and ease of use—strengthening the long-term dependability of core industrial systems.


Technical Support and After-Sales Service
With acceptance now complete, Techemer Composites reaffirmed its commitment to customers by offering full-spectrum technical support. From routine on-site checkups to rapid-response upgrades, clients using these mechanical seals for pump systems can count on dependable service.
This successful deployment not only reinforces the company's engineering strengths but also lays the groundwork for scalable, future-ready solutions across different industries—from petrochemical to energy to municipal water supply, where water pump mechanical seals play a vital role.Looking Ahead: Innovation in Mechanical Sealing Technology
As industrial equipment becomes more demanding, the role of high-performance pump mechanical seals grows ever more critical. Techemer will continue to invest in smarter, more durable mechanical seals for pumps, focusing on reducing energy loss, preventing environmental impact, and extending service intervals.
This landmark project provides both a technical foundation and operational experience that will shape the next wave of sealing solutions—bringing fresh momentum to the evolution of mechanical seals for water pumps and pushing the limits of what sealing technology can achieve.

#unit-ZsUefYgdsnIrm6g{padding-top:1vw;}#unit-ZsUefYgdsnIrm6g [ce-data-type="inner"]{flex-direction:column;}#unit-ZsUefYgdsnIrm6g .ce-video_inner{display:block;}#unit-ZsUefYgdsnIrm6g .ce-video_poster{display:block;position:relative;z-index:1;}#unit-ZsUefYgdsnIrm6g .ce-list_items{margin:-0.8vw;}#unit-ZsUefYgdsnIrm6g [ce-data-type="title"]{display:none;}#unit-ZsUefYgdsnIrm6g [ce-data-type="subtitle"]{display:none;}#unit-ZsUefYgdsnIrm6g [ce-data-type="summary"]{display:none;}#unit-ZsUefYgdsnIrm6g .ce-image_item{--svg-color:rgba(131, 195, 38,1);--image-scale:0.75;padding-top:75%;}#unit-ZsUefYgdsnIrm6g .ce-image{height:100%;width:100%;--image-effect:3;object-fit:cover;}@media(max-width:1199px){#unit-ZsUefYgdsnIrm6g .ce-list_items{margin:-1.5vw;}}@media(max-width:767px){#unit-ZsUefYgdsnIrm6g{padding-top:3vw;}}












微信截图_20241210192421

















微信截图_20241210192345 (2)

















1 (16)

When a vertical shaft passes through a bearing and is lubricated, the mechanical interaction may appear straightforward. In reality, this structure represents one of the most demanding configurations in marine propulsion units, hydro stations, vertical pumps, offshore energy systems, and industrial machinery. The vertical orientation introduces additional axial weight, lubrication flow instability, and a greater tendency for misalignment—making the choice of bearing materials, lubrication method, and system design critical for long-term reliability.

This article combines engineering fundamentals with modern industry insights to explain how vertical-shaft bearings function, what challenges they face, and why water-lubricated polymer bearings are becoming the preferred solution in many applications.

Understanding What Happens When “a Vertical Shaft Passes Through a Bearing and Is Lubricated”
When a vertical shaft passes through a bearing and is lubricated, the bearing must support both radial and axial loads while allowing smooth rotation under continuous fluid contact. Unlike horizontal shafts, a vertical system relies heavily on hydrodynamic film formation and the ability of the lubricant—often water—to remain stable between the rotating and stationary surfaces.

This configuration is widely used in pumps, marine stern tube systems, hydro turbines, vertical mixers, and offshore energy equipment. If lubrication becomes unstable, the shaft will experience metal-to-polymer or metal-to-metal contact, resulting in rapid wear, overheating, vibration, noise, and eventual failure.

Understanding this mechanism is essential for engineers optimizing performance or solving operational problems.

Why Vertical-Shaft Bearing Assemblies Are Critical to System Reliability
Vertical machines rely on bearings that:


Support combined radial + axial loads
Maintain alignment across long shaft spans
Operate in immersion or semi-immersion environments
Resist abrasive particles often present in water
Establish a stable fluid film at low and high speed

Because gravity acts directly along the shaft axis, axial thrust becomes a severe engineering consideration. Even slight misalignment can magnify radial contact forces by 2–3×, accelerating wear dramatically.

In marine and hydro applications, bearings may run 24/7 for 10–25 years, making materials, lubrication behavior, and geometric design critically important.



Where Vertical Bearings Are Used: Marine, Hydro, Pumping Systems, and More
Vertical-shaft bearings appear in systems such as:

• Marine Stern Tubes (propeller shafts)

Submerged, large-diameter bearings requiring stable water flow.

• Hydro Turbine Guide Bearings

Vertical hydro-turbine shafts can exceed 40 tons, demanding excellent hydrodynamic performance.

• Vertical Pumps and Circulators

Municipal pumps, cooling water pumps, deep-well pumps—many run continuously in water with abrasive sand or silt.

• Offshore and Renewable Energy Systems

Wave and tidal generators use polymer water bearings for sustainability.

Each application exposes the bearing to unique lubrication, load, and contamination challenges.

Key Engineering Challenges When a Vertical Shaft Operates Inside a Lubricated Bearing
Even with lubrication present, vertical bearings face multiple failure risks:

1. Hydrodynamic Film Loss at Low Speed

Startup and shutdown phases often create boundary lubrication, increasing wear rates sharply.

2. Axial Load-Induced Contact

Excessive thrust compresses the film, raising friction and temperature.

3. Water Quality Issues

Abrasive particles (sand, silt) may increase wear by 300–500% according to ASTM D5963 rubber wear comparisons.

4. Shaft Misalignment

Even 0.1–0.2 mm misalignment can cause non-uniform pressure distribution along the polymer liner.

5. Lubricant Flow Instability

Insufficient water flow disrupts heat removal and hydrodynamic lift.

Vertical machines must therefore rely on materials with high wear resistance, low friction, and the ability to operate under mixed lubrication.



How Water Lubrication Works: Hydrodynamic Film, Boundary Conditions, and Dry-Start Behavior
Water-lubricated bearings operate under two lubrication regimes:


Hydrodynamic Lubrication (Ideal State)

Rotation creates pressure that forms a water film separating shaft and bearing.

This reduces friction to 0.02–0.05, similar to oil-lubricated systems.


Boundary Lubrication (Critical State)

Occurs during startup, shutdown, and low-speed operation.

Contact increases friction to 0.15–0.25, demanding strong wear-resistant materials.

Water as a Lubricant—Advantages


Non-flammable
Environmentally safe
Immediate heat removal
No oil pollution risk

The challenge: Water is thin (low viscosity), meaning the material must compensate through mechanical design and geometry.

Why Water-Lubricated Polymer Bearings Are Becoming the Industry Standard
Modern polymer bearings have replaced metal bearings in many vertical systems due to:

High Wear Resistance: Polymer composites show 3–8× lower wear in ASTM D5963 tests compared to traditional rubber or metal-based systems.

Superior Dry-Start and Boundary-Lubrication Behavior: Engineered polymer matrices have built-in lubricity reducing startup friction.

Corrosion-Free, Oil-Free Operation: No rust, no galvanic reaction, no oil contamination.

Regulatory Alignment: IMO, EPA VGP, and marine environmental regulations encourage non-oil systems.

Where Techemer / INDRON® Fits Naturally
In water-lubricated applications, material quality decides bearing life.

Techemer’s INDRON® water-lubricated bearings—including the TSTN polymer series—are engineered specifically for vertical shaft environments:


Proven wear resistance significantly higher than common rubber bearings
Stable hydrodynamic film due to optimized groove geometry
Longer lifespan in abrasive waters (river, coastal, desalination)
Used in marine workboats, hydro turbines, and vertical pumps
Ideal for metal-bearing replacement in stern tubes and guide bearings

These products integrate seamlessly into the engineering solutions described—without excessive branding—giving real value to engineers seeking performance improvement.

Engineering Solutions to Improve Reliability When a Vertical Shaft Runs in a Lubricated Bearing
1. Select Advanced Polymer Bearing Materials

High-performance composites can reduce wear volume by 40–70% in abrasive water.

2. Optimize Water Flow to the Bearing

A minimum flow rate ensures cooling and stable lubrication.

Poor water flow is the most common cause of premature failure.

3. Improve Shaft Surface Hardness and Finish

Recommended:

Hardness ≥ HRC 40

Surface roughness 0.3–0.5 μm Ra

4. Use Proper Bearing Clearance

Too tight: film collapse

Too loose: shaft vibration

Engineering guidelines must be followed for thermal and swelling allowances.

5. Incorporate Grooved Bearing Geometry

Helps water circulation and improves hydrodynamic lift at startup.

6. Verify Alignment with Laser Tools

Reduces uneven pressure and prolongs bearing life drastically.

7. Choose Water-Lubricated Bearings for Environmental Compliance

Especially important for vessels operating in protected waters.



Conclusion
When a vertical shaft passes through a bearing and is lubricated, maintaining a stable lubrication regime is essential to preventing vibration, wear, and failure. Modern water-lubricated polymer bearings have become the engineering standard for marine, pump, and hydro applications due to their high wear resistance, environmental benefits, and reliable hydrodynamic performance.

Through proper material selection, lubrication design, and engineering control, vertical bearing systems can achieve longer life, higher efficiency, and lower operational risk.

In modern mechanical engineering, few component combinations are as fundamental—and as influential—as the shaft and bearing system. From marine propulsion and vertical pumps to hydro turbines and industrial rotating equipment, shaft and bearing performance directly determines reliability, efficiency, and service life.

Although shafts and bearings are often treated as standard components, real-world failures show that poor system-level design leads to vibration, wear, energy loss, and unexpected downtime. To achieve long-term stability, shafts and bearings must be selected and engineered together.

This article provides a guide to shaft and bearing systems, covering design fundamentals, common failure mechanisms, lubrication strategies, and modern material solutions—especially water-lubricated bearing technology.



What Is a Shaft and Bearing System?
A shaft and bearing system consists of two interacting mechanical elements: the shaft, which transmits torque and motion, and the bearing, which supports the shaft while controlling friction and alignment. Their performance is inseparable throughout the operating life of the machine.

Shaft Types in Engineering Applications
Shafts are not generic components. Their design is closely tied to load, speed, alignment tolerance, and operating environment. A shaft used in marine or pump applications must withstand continuous rotation while providing a stable interface for the bearing under real-world conditions.

Shafts vary widely depending on application, but common examples include:


Propeller shafts in marine vessels
Pump shafts and vertical line shafts
Turbine and generator shafts
Motor and gearbox shafts
Rudder stock shafts

Each shaft type imposes different requirements on bearing selection, lubrication, and material compatibility.

Bearing Types Supporting Shafts
While the shaft transmits motion, the bearing determines how that motion is supported. Bearings control friction, load distribution, and shaft stability. Selecting the correct bearing type is essential for maintaining reliable shaft operation over long service periods.

Bearings supporting shafts are generally classified as:


Plain (journal) bearings
Water-lubricated bearings
Rubber-lined bearings
Polymer composite bearings
Ceramic or hybrid bearings

The choice depends on load, speed, lubrication method, and operating environment rather than size alone.

How Shaft and Bearing Systems Work Together
In engineering practice, shafts and bearings cannot be evaluated separately. Every change in load, speed, or lubrication condition affects both components simultaneously. Treating them as a single mechanical system is essential for predicting wear behavior and ensuring stable operation.

A shaft and bearing must be analyzed as a single mechanical system, not as independent components. At a functional level, bearings must:


Support radial and axial loads
Maintain shaft alignment
Establish a stable lubrication film
Minimize friction and wear
Dissipate heat and contaminants

Failure in any one function directly impacts shaft surface integrity and system reliability.



Common Shaft and Bearing Problems (Failure Analysis)
Most shaft and bearing failures do not occur suddenly. They develop gradually due to misalignment, lubrication instability, or material mismatch. Understanding these failure mechanisms allows engineers to improve reliability through better design and material selection.

What Causes Shaft and Bearing Failure?
Understanding why shaft and bearing systems fail is essential for proper design and material selection. The most common causes include:


Inadequate or interrupted lubrication
Shaft misalignment or deflection
Excessive vibration
Abrasive particles in the lubricant
Incorrect bearing material selection
Uneven load distribution or edge loading

In water-exposed applications, lubrication instability and abrasive contamination are dominant failure drivers.

How to Identify Shaft or Bearing Failure
Typical warning signs include:


Abnormal noise during operation
Increasing vibration levels
Elevated bearing or shaft temperature
Visible shaft scoring or grooving
Reduced efficiency or power loss

Early detection helps prevent secondary damage to shafts, seals, and housings.

Key Shaft and Bearing Design Considerations
Designing a reliable shaft and bearing system requires balancing load capacity, friction, wear resistance, and lubrication method. Optimizing one factor without considering the others often leads to premature failure, especially in demanding operating environments.

Load Type and Magnitude
Bearings must be selected to support:


Radial loads
Axial (thrust) loads
Combined loading conditions

Improper load handling often results in edge stress and accelerated wear.

Shaft Speed and Diameter
Higher speeds demand:


Stable lubrication films
Low friction coefficients
Effective heat dissipation

These requirements increasingly favor advanced polymer and composite bearing materials.

Lubrication Method Selection
Lubrication strategy directly affects shaft and bearing performance:


Oil-lubricated bearings
Grease-lubricated bearings
Water-lubricated bearings

Modern systems increasingly adopt water lubrication for simplicity and environmental compliance.

Why Water-Lubricated Shaft and Bearing Systems Are Increasingly Preferred
Oil-lubricated shaft and bearing systems introduce complexity and environmental risk. As materials improve, water-lubricated bearings have become a practical alternative, offering simpler design, stable performance, and compliance with modern environmental requirements.

Advantages of Water-Lubricated Bearings
Key benefits include:


Zero oil leakage
Self-cooling capability
Reduced system complexity
Lower maintenance requirements
Stable operation in wet environments

These advantages make water-lubricated bearings ideal for marine, pump, and energy applications.

Shaft and Bearing Material Compatibility
Material compatibility between shaft and bearing directly influences wear and service life. Proper pairing ensures predictable friction behavior and protects the shaft surface, particularly in water-lubricated and abrasive operating conditions.

Traditional Material Pairings
Steel shaft with rubber bearing

Bronze sleeve with rubber bearing

These solutions are widely used but often suffer from higher wear rates.

Modern Material Pairings

Stainless steel shaft with polymer composite bearing
Coated shaft with water-lubricated composite bearing
Ceramic shaft or sleeve with polymer bearing

Advanced materials are engineered to wear preferentially, protecting the shaft.



Advanced Polymer Bearings for Shaft Applications
High-performance polymer composite bearings represent a major advancement in shaft and bearing technology.

Key engineering advantages include:


Extremely low wear rate
High load-bearing capacity
Excellent abrasion resistance
Dimensional stability in water
Consistent friction behavior

These characteristics significantly extend shaft service life and reduce maintenance frequency.

Shaft Protection: Why Bearing Selection Determines Shaft Life
The shaft is usually far more expensive to replace than the bearing. Improper bearing selection can lead to shaft scoring, corrosion, or sleeve damage.

Water-lubricated polymer bearings are designed to be shaft-friendly, ensuring controlled bearing wear while preserving shaft surface integrity.

Typical Applications of Shaft and Bearing Systems
Marine Applications
In marine systems, shafts and bearings operate continuously under load in seawater. Reliability, wear resistance, and lubrication stability are critical for stern tube bearings, propeller shafts, and rudder systems.

Pump Applications
Vertical pumps and cooling water pumps rely on stable shaft and bearing systems to maintain alignment and efficiency during long operating cycles.

Energy and Power Applications
Hydroelectric turbines and tidal energy systems demand oil-free shaft and bearing solutions capable of operating reliably in submerged environments.

How to Select the Right Shaft and Bearing Solution
Engineers should evaluate:

1. Operating environment

2. Load and speed conditions

3. Lubrication method

4. Environmental compliance requirements

5. Target service life

For many modern systems, water-lubricated polymer bearings provide the optimal balance between performance and sustainability.

Conclusion: Shaft and Bearing as an Integrated System
A shaft and bearing must always be designed and evaluated as a unified system. Ignoring material compatibility or lubrication strategy leads to premature wear and failure.

By adopting advanced water-lubricated bearing technologies, engineers can extend shaft life, reduce maintenance costs, and improve overall system reliability.

FAQ – Shaft and Bearing
Q1: What is the function of a shaft and bearing?

A1: A shaft transmits torque and motion, while a bearing supports the shaft and reduces friction under load.

Q2: What causes shaft and bearing wear?

A2: Common causes include poor lubrication, misalignment, abrasive contamination, excessive load, and incorrect material selection.

Q3: Are water-lubricated bearings better than oil-lubricated bearings?

A3: In many applications, water-lubricated bearings offer simpler design, lower maintenance, and better environmental performance.

Q4: How do bearings protect shafts?

A4: Properly selected bearings are designed to wear before the shaft, preventing shaft surface damage.

Q5: Where are water-lubricated shaft and bearing systems used?

A5: They are widely used in marine propulsion, vertical pumps, hydro turbines, and other water-exposed machinery.
